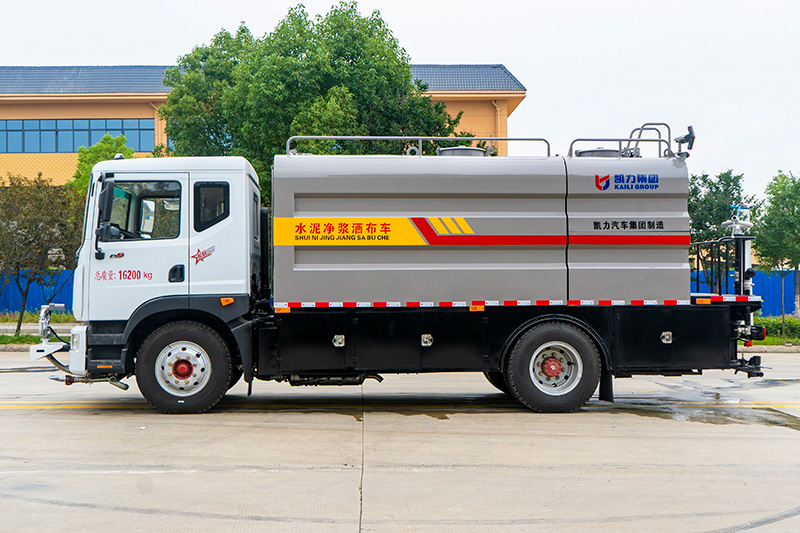

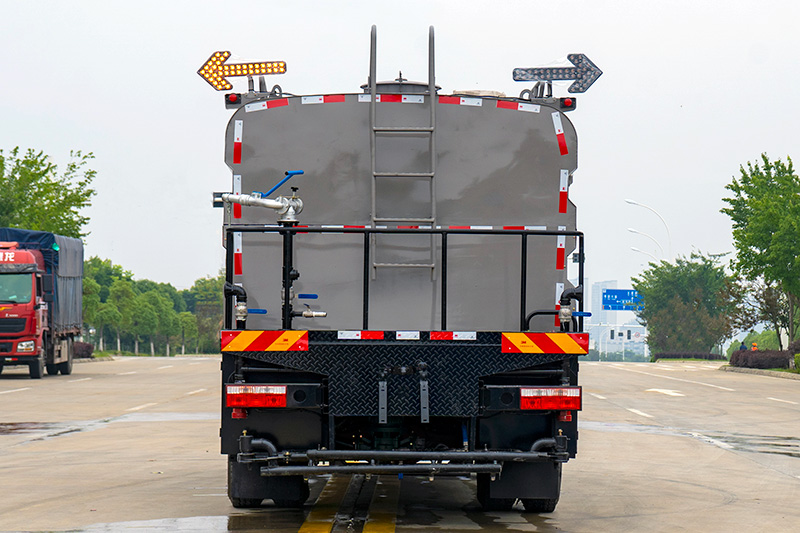

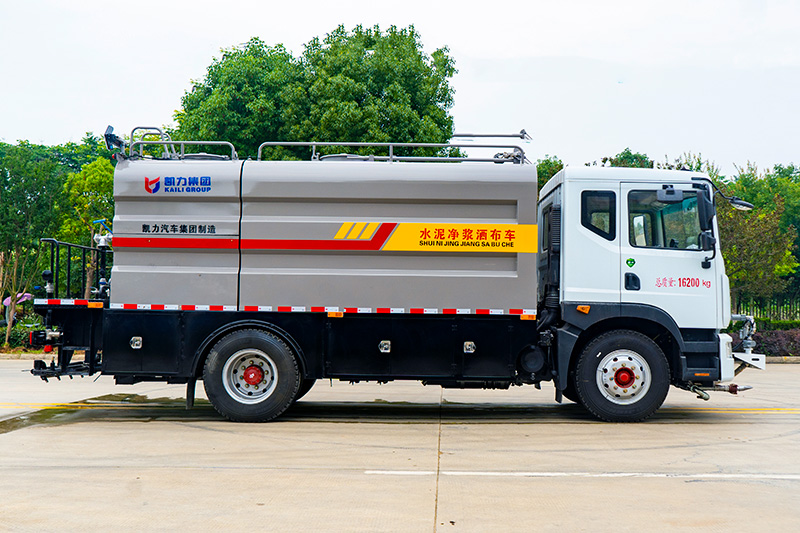

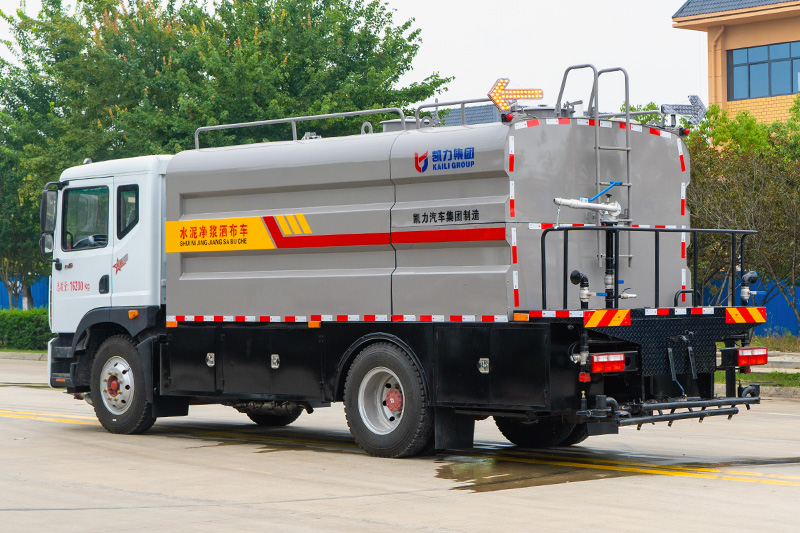

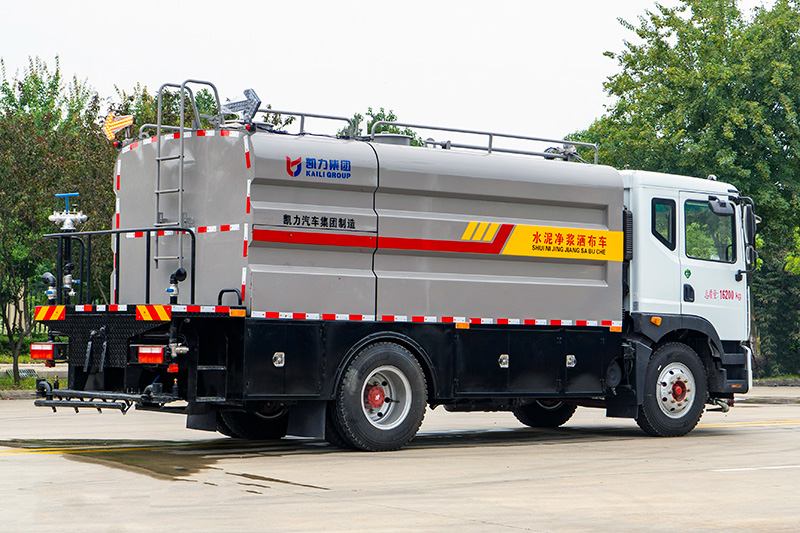

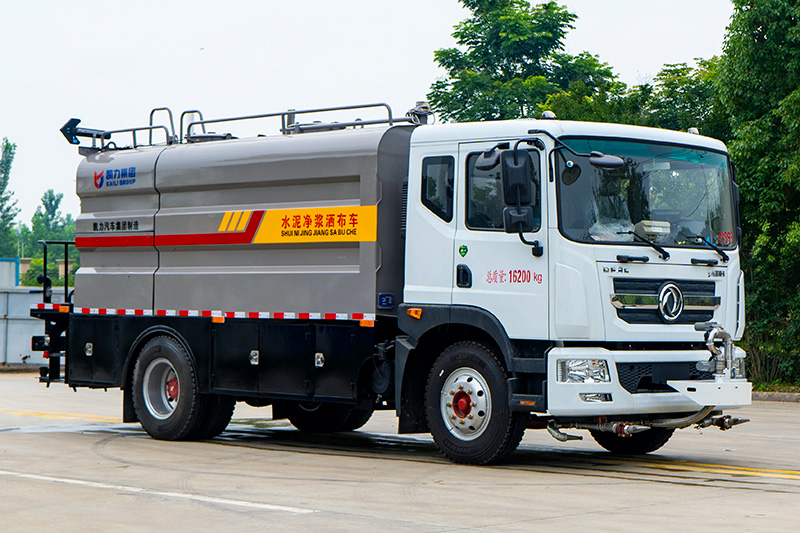

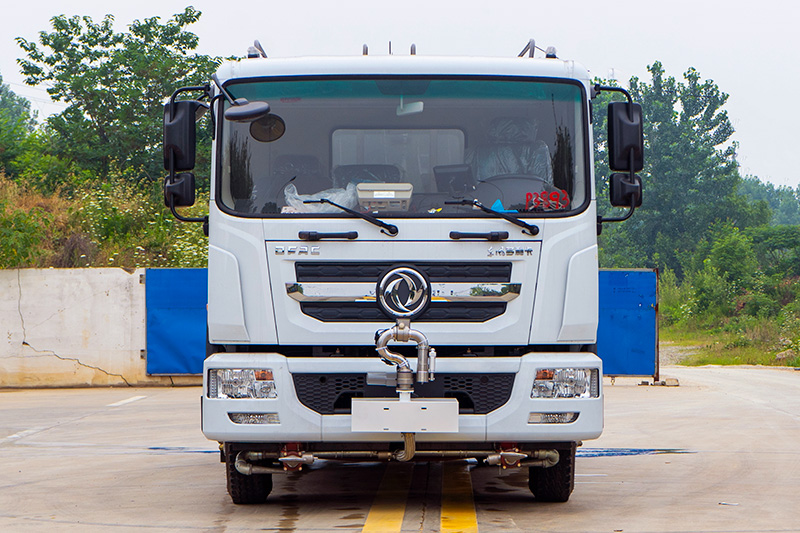

Dongfeng D9 Cement Slurry Sprayer Truck

Product trademark

Kailifeng brand

Announcement batch

372

product name

Cement slurry spreader truck

product model

KLF5160TJSE6

gross mass （kg）

16200

curb weight （kg）

8000,8500

Rated mass (kg)

8070,8005,7570,7505

outline dimension （mm）

7600,7700,7760,7860×2400,2450×

3380,3450

Water tank (m3)

11.5

Cement silo (m3)

3.5

water pump

Yifeng Pump 60/90

frequency transformer

5.5KW

Cement spreading width

5.5 meters-6 meters

agitator tank （L）

228

load cell

5 tons

gen

24KW

Stirring motor

2.2KW

Gongjiang motor

380V/3KW

mud pump

380KW/4KW

vibration pump

380V/0.55KW

remarks ：

Note: This vehicle is a specialized road surface cement slurry spraying machine equipped with a dedicated spraying device. The side protective material is Q235B with an integral skirt structure, while the rear protection is replaced by a dedicated device. The lower edge height from ground level is 460mm. ABS system manufacturers include JiaoZuo BoRuiKe Control Technology Co., Ltd. (model: JABS) and XiangYang DongFeng LongCheng Machinery Co., Ltd. (model: ABS/ASR-24V-4S/4M). The vehicle is modified with a 3950mm wheelbase only and features an optional speed limiter with a maximum speed of 89km/h. The following dimensions apply to the vehicle: length/wheelbase/front suspension/back suspension (mm): 7600/3950/1260/2390,7700/3950/1260/2490,7760/3950/1420/2390,7860/3950/1420/2490.

[Chassis Technical Parameters]

Chassis model

EQ1165LJ9CDE

Chassis name

truck chassis

brand name

Dongfeng brand

manufacturing enterprise

Dongfeng Motor Co., Ltd.

number of axles

2

Number of tires

6

wheel base （mm）

3950

tyre size

9.00R20 steel wire tire

engine type

Yuchai 165 horsepower

gear-box

Fast 8-speed

Fuel types

diesel oil

Emission basis standards

GB17691-2018 National VI
