| Item | Parameter | Remarks |
|---|---|---|

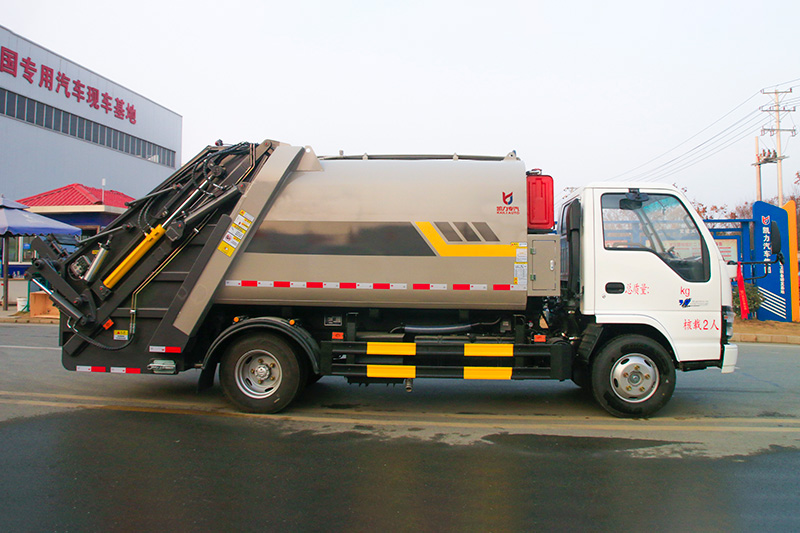

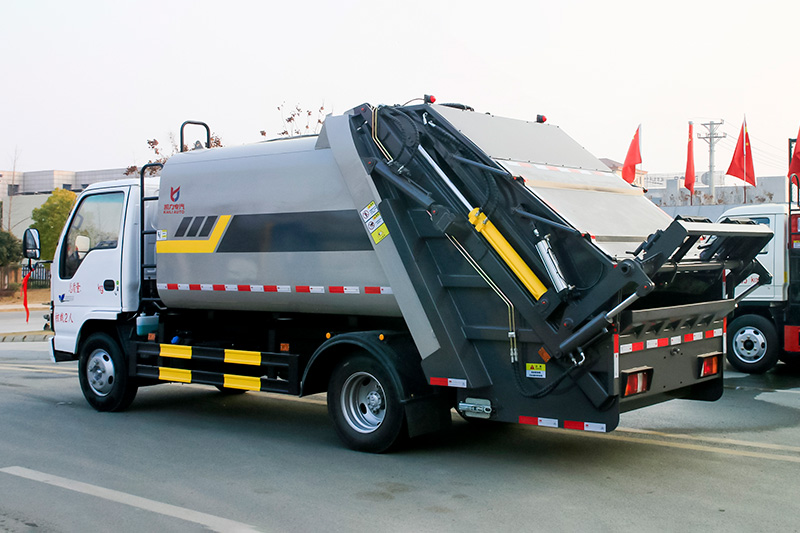

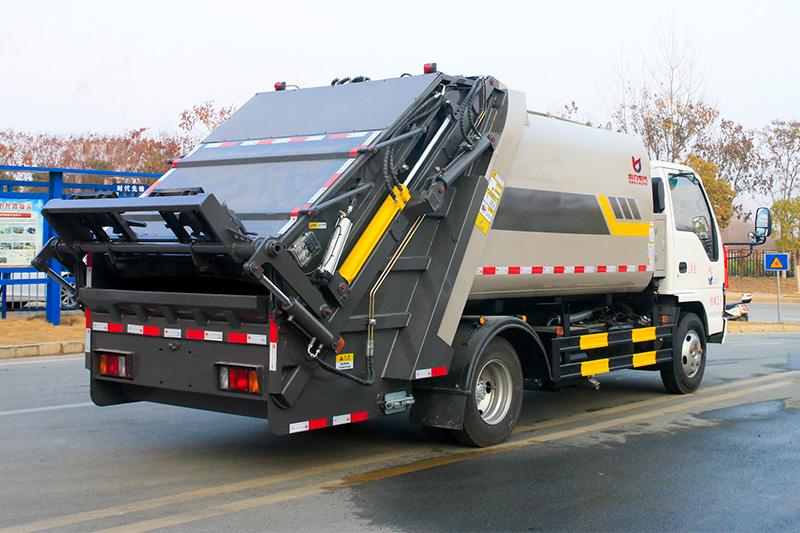

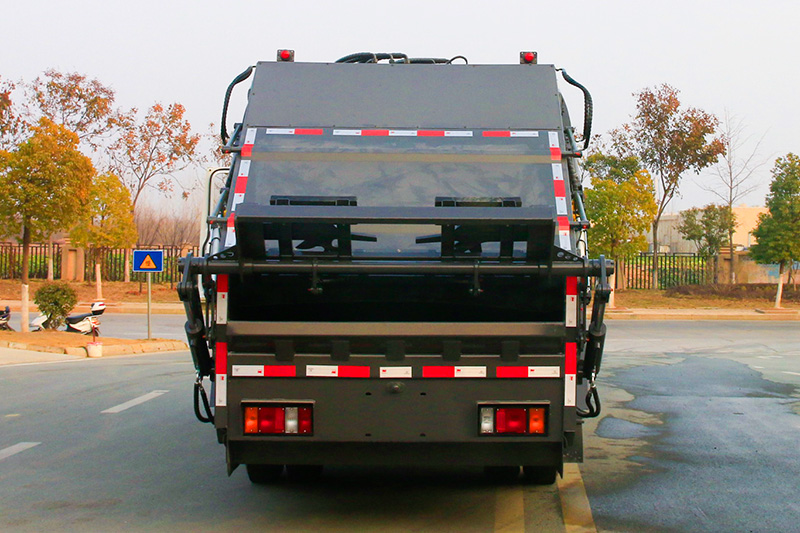

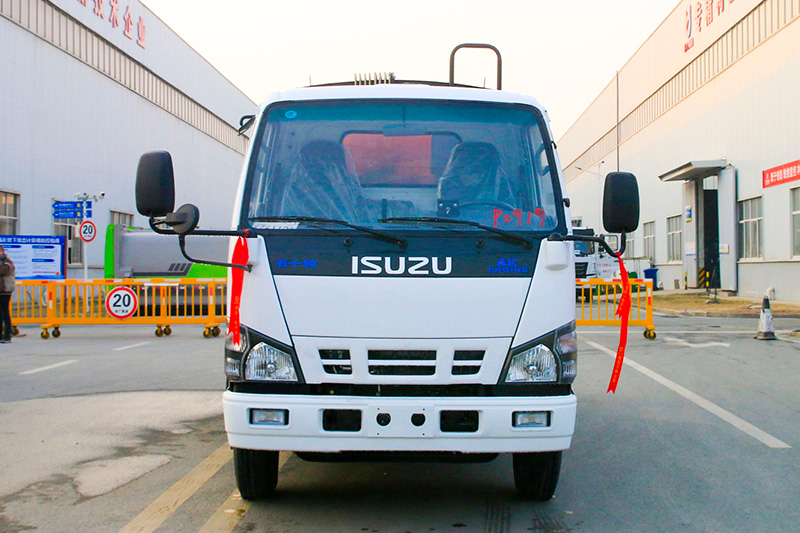

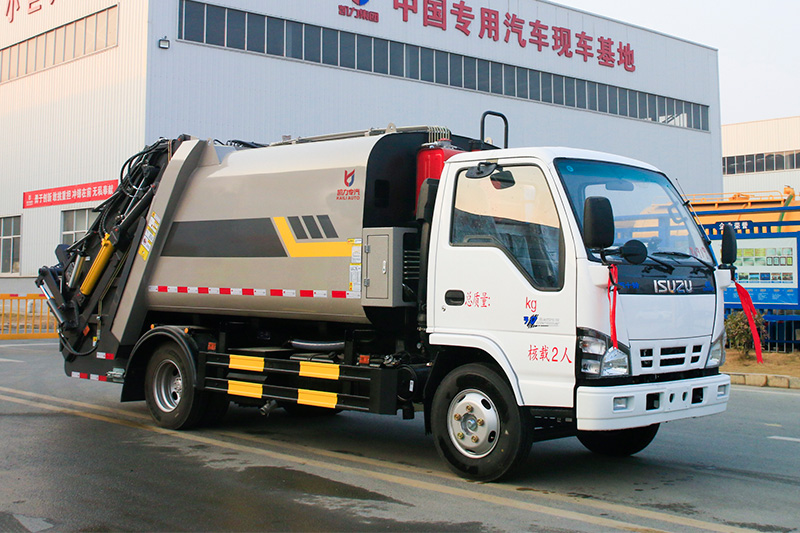

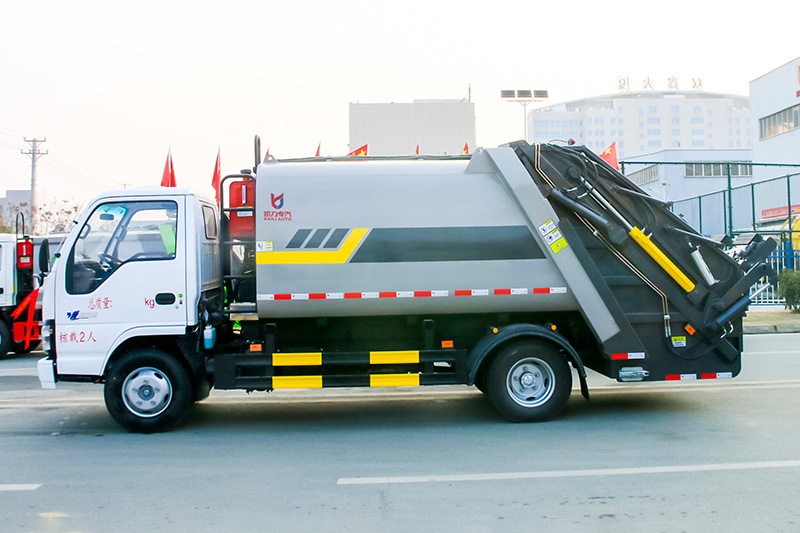

| Vehicle Model | KLF5070ZYSQ6 | 4th generation new type compactor |
| Wheelbase (mm) | 3360 | — |
| Tire Specification | 7.00R16 steel-belted tire | — |
| Transmission | Isuzu 5-speed gearbox | — |
| Engine Model | 4KH1CN6LB | Manufactured by Isuzu (China) Engine Co., Ltd. |
| Engine Power (kW) | 88 | China VI diesel engine |
| Overall Dimensions (L×W×H, mm) | 6850 × 2080 × 2650 | Different rear structures result in different overall lengths |
| Gross Vehicle Weight (kg) | 7300 | — |
| Rated Payload (kg) | 1630 | Varies with configuration |
| Curb Weight (kg) | 5540 | Certified based on actual vehicle weight |
| Body Effective Volume (m³) | 7 | — |
| Operation Mode | Electric / Manual / Remote | All three modes are standard equipment |
| Loading Cycle Time | 12–25 s | — |
| Unloading Time | ≤25 s | — |
