Hot Sale Recommendation: Full-area watering, enjoy greenery in peace. Kailifeng Xingchen 13-cubic-meter all-electric greening sprinkler truck makes a fresh debut!

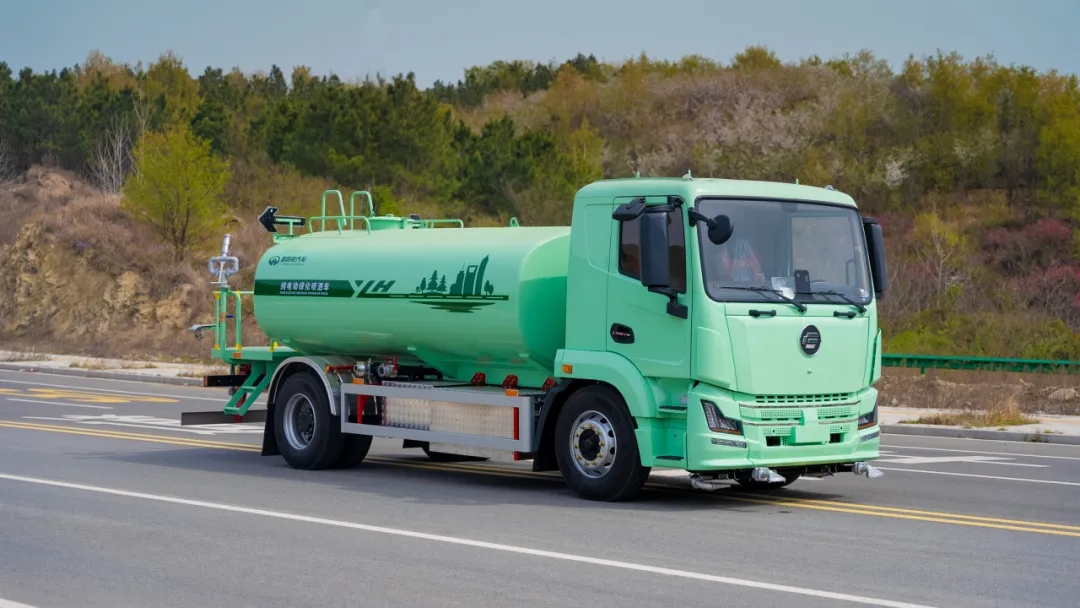

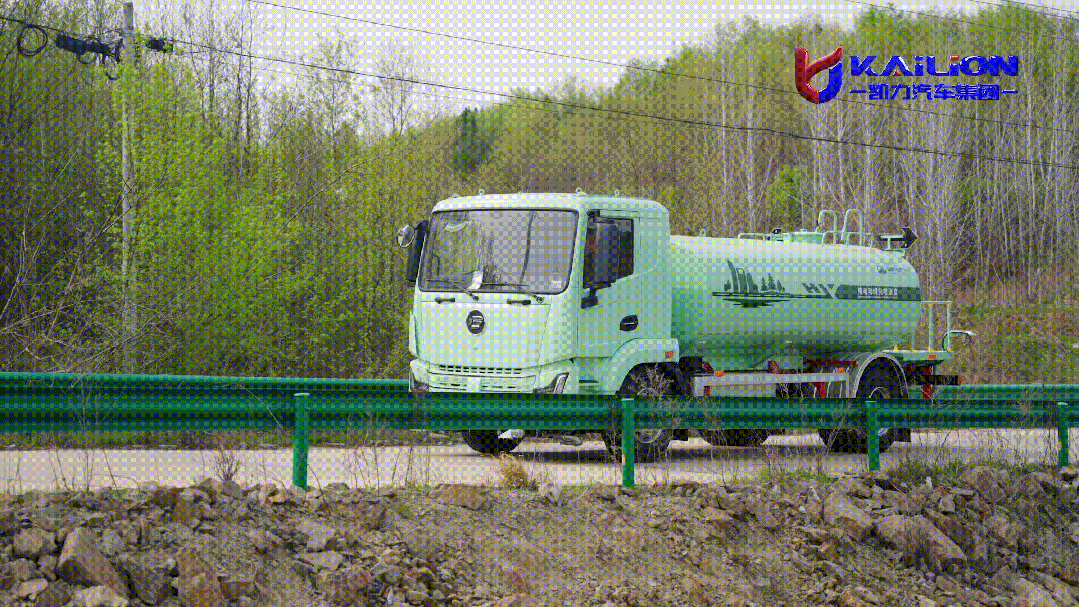

The Kaili Feng KLF5185GPSBEV Pure Electric Green Spraying Vehicle is the fourth-generation new energy product meticulously developed by Kaili Group in response to the national "Dual Carbon" strategy. Equipped with full functionalities including front flushing, rear sprinkling, side spraying, and a high-pressure water cannon, this vehicle combines pure electric drive, modular assembly, and smart interactive control. It perfectly balances energy efficiency, environmental protection, low noise, low operating costs, and ease of use, serving as a green pioneer for urban landscaping and road maintenance.

Core Advantages: Why Choose It?

High-Efficiency Operations: Front flush width of 15-30 meters; rear platform high-pressure cannon reach of 30-35 meters, ensuring extensive coverage.

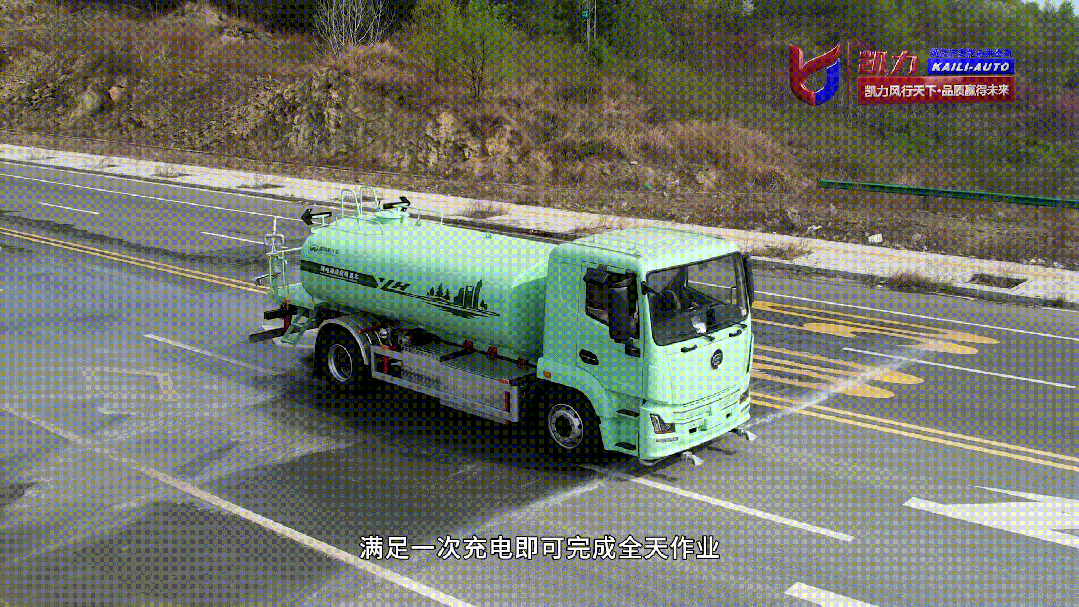

Long-Lasting Range: Powered by a 190.51 kWh LFP (Lithium Iron Phosphate) battery, it supports fast charging from 30% to 80% in just 50 minutes. One hour of charging equals a full day of operation.

Exquisite Smart Manufacturing: The tank is crafted from premium WISCO carbon steel and treated with an electrophoretic coating and electrostatic powder spraying process. All supporting components receive the same treatment, guaranteeing 10 years of anti-corrosion and rust protection.

Smart Interaction: Features standard voice and touchscreen controls with a low-water-level alarm system for intuitive and convenient human-machine interaction.

Modular Assembly: Built on the country's first standardized production line, the vehicle is fully assembled without welding. It takes only 90 minutes to roll off the line, making future maintenance much more convenient.

01. Robust Pure Electric Chassis: The Foundation of Green Power

Chassis Model: HQG1180EVCS.

Battery System: Equipped with a high-quality CATL LFP battery with a capacity of 190.51 kWh, ensuring safety and stability.

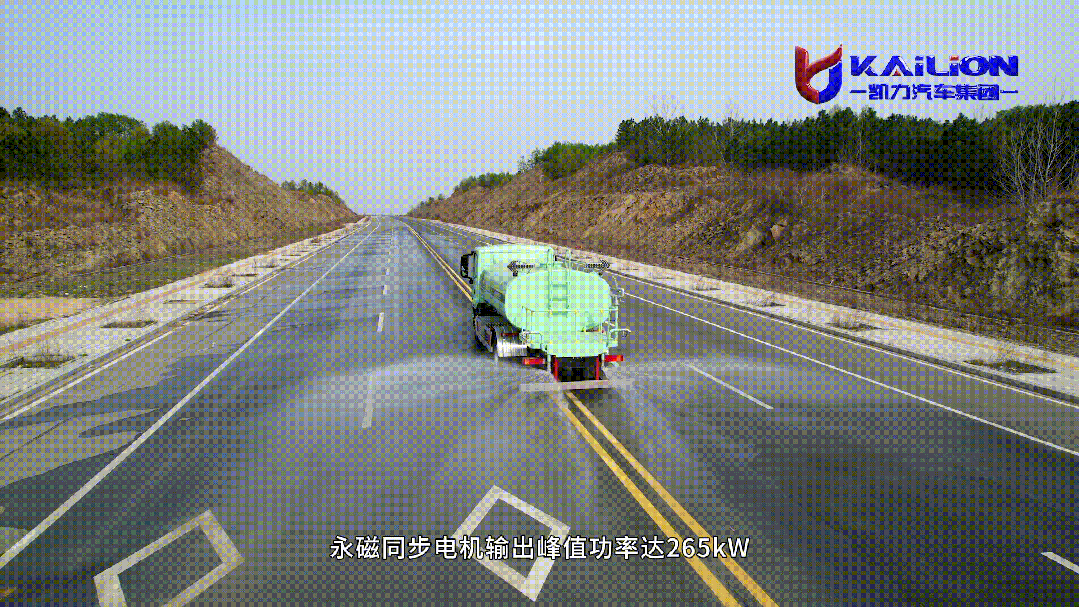

Drive Motor: Features a permanent magnet synchronous motor with a rated/peak power of 175 kW / 265 kW, delivering reliable and secure performance.

Charging: Supports fast charging, reaching 80% from 30% in just 50 minutes to meet daily operational needs efficiently.

Highlight: The powerful power system, combining CATL batteries and a strong motor, ensures the vehicle can handle long-duration, large-scale operations with operating economics far surpassing traditional fuel vehicles.

02. Versatile Spraying System for Diverse Scenarios

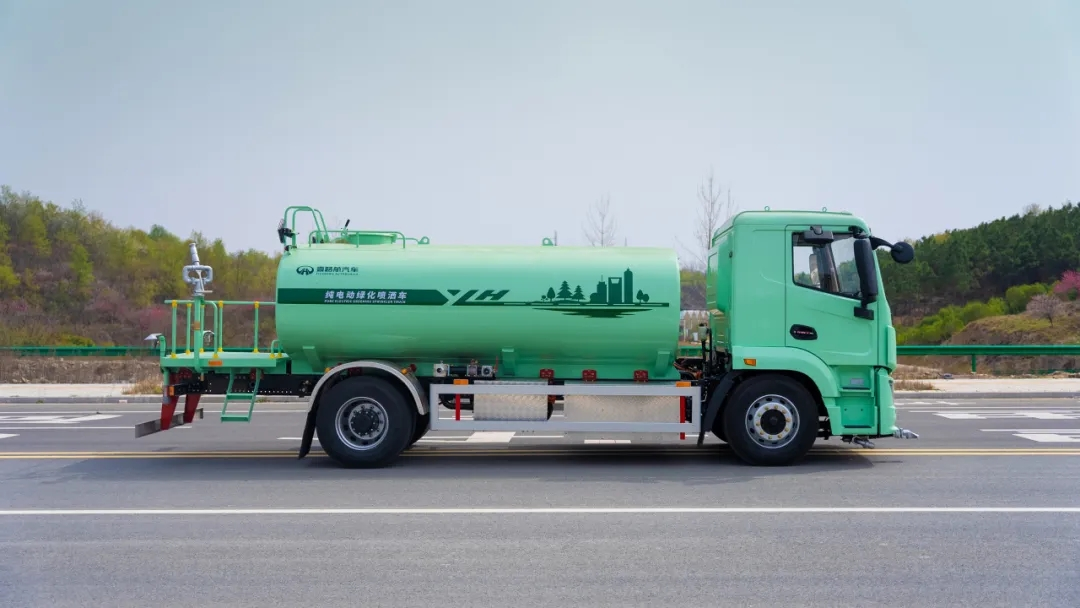

Tank Capacity: A 13 m³ large-capacity tank made of premium WISCO carbon steel. It features anti-surge baffles for enhanced stability and durability.

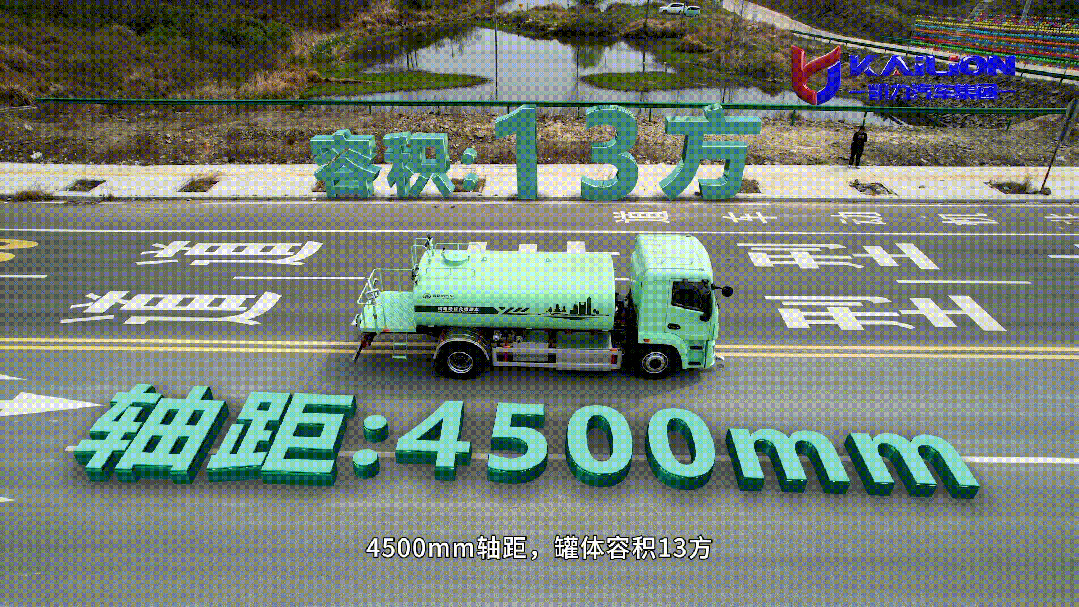

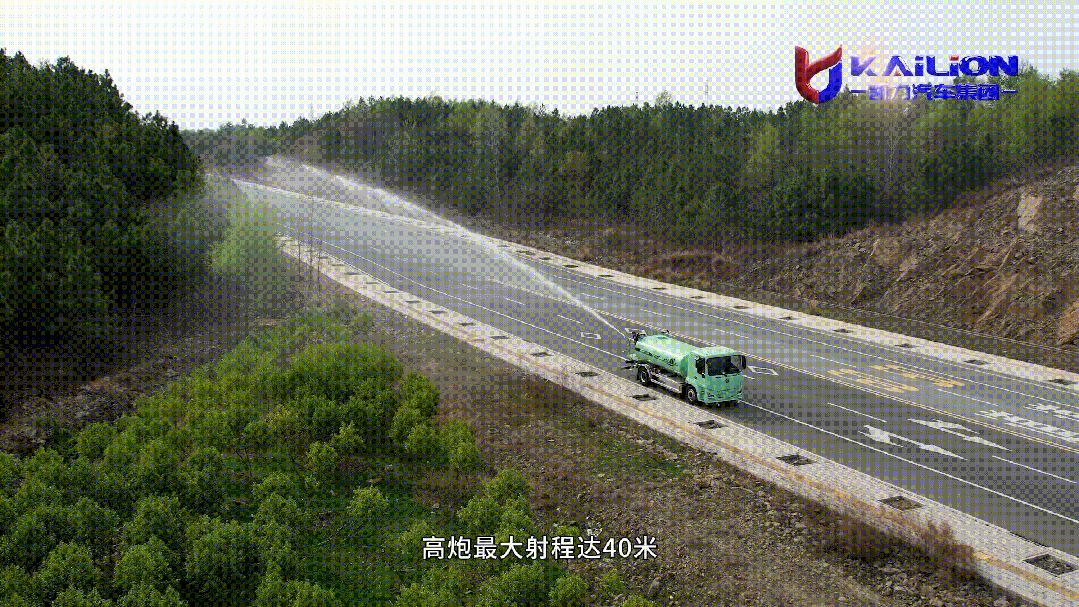

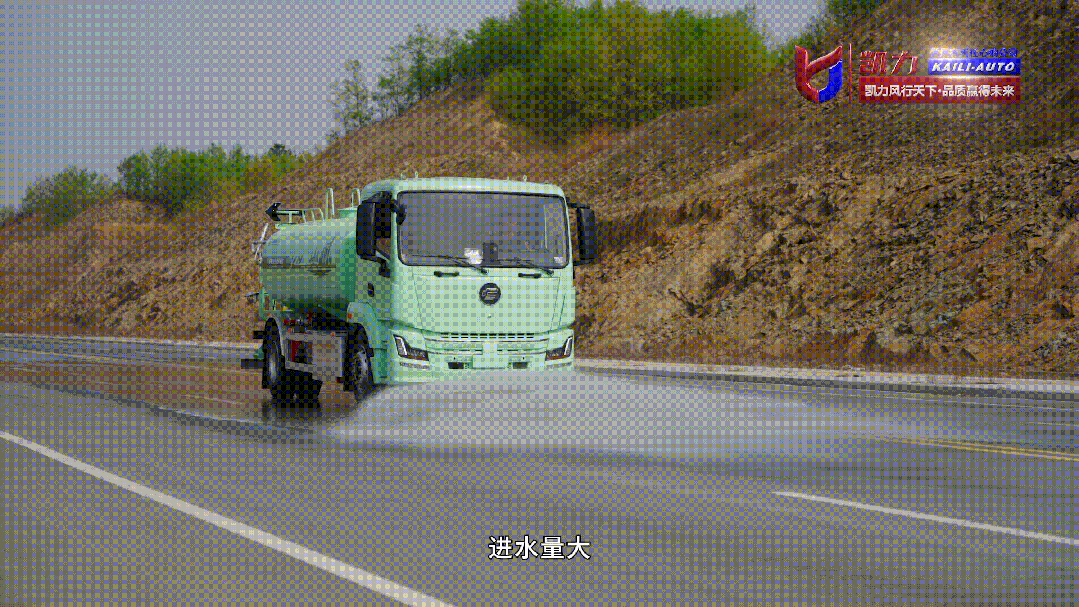

Core Performance: With a 4500 mm wheelbase, it offers a front flush width of 15-30 meters and a 360° adjustable rear high-pressure cannon with a reach of 30-35 meters. The dedicated water pump has a vertical suction lift of 6 meters and utilizes a Φ89 large-diameter inlet pipe for high-volume, even spraying.

Standard Configurations: Universal front flush, rear sprinkling, side spraying, high-pressure water cannon, and fire-fighting interfaces.

Highlight: Diverse spraying functions easily handle everything from road washing and high-altitude dust suppression to landscaping irrigation and emergency firefighting.

03. Precision Smart Manufacturing: Enduring Quality

Intelligent Production: The tank is fully welded by robots for beautiful, high-precision seams, ensuring consistent quality through standardized production.

Modular Design: All structural components are independently molded and assembled without welding, offering strong versatility and easy maintenance.

Premium Coating: The tank uses an electrophoretic coating plus electrostatic powder spraying, while structural parts use electrostatic powder spraying, ensuring 10 years of rust protection.

Structural Optimization: The tank and sub-frame are connected via bolted connection plates and a dual-support design. This ensures a firmer connection, prevents shifting on bumpy roads, and enhances safety.

Highlight: Every step, from materials and craftsmanship to design and assembly, reflects an ultimate pursuit of quality.

04. Smart Interaction & Safety Assurance

Smart Control: Standard voice and touchscreen controls, along with a low-water-level alarm, make operation straightforward and user-friendly.

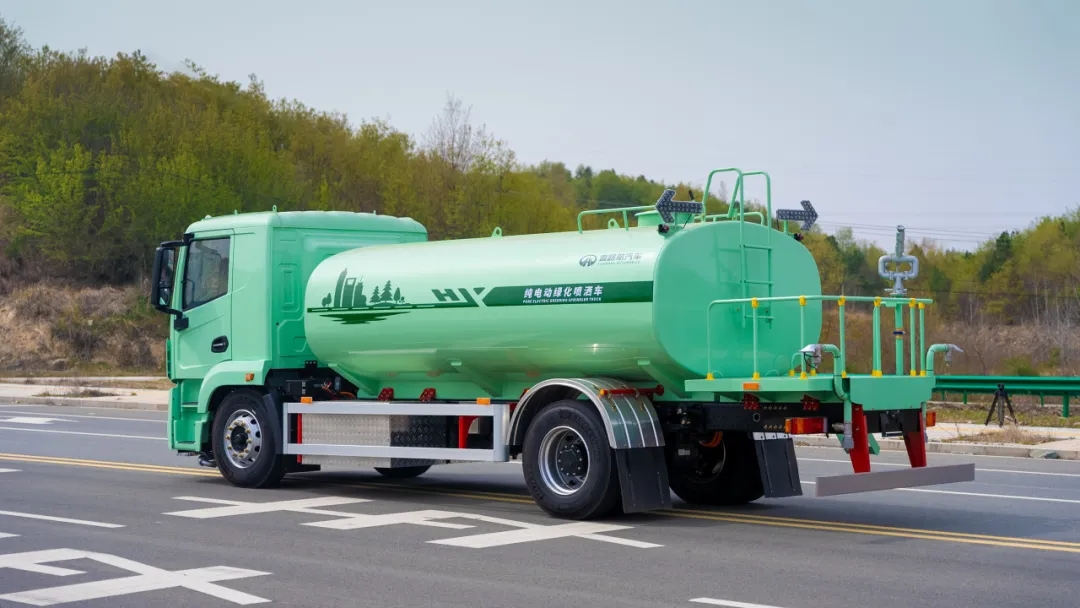

Human-Centric Design: Inspection holes are repositioned with added ladders for easy tank access. The rear platform is a punched, anti-slip surface with high load-bearing capacity. Two drainage outlets at the bottom of the tank allow for complete water drainage in winter to prevent freezing and cracking.

Highlight: The robust body structure guarantees durability and safety at the source, while the smart control system significantly reduces operational intensity, uniting reliability with convenience.

05. Optional AI Smart Obstacle Avoidance System

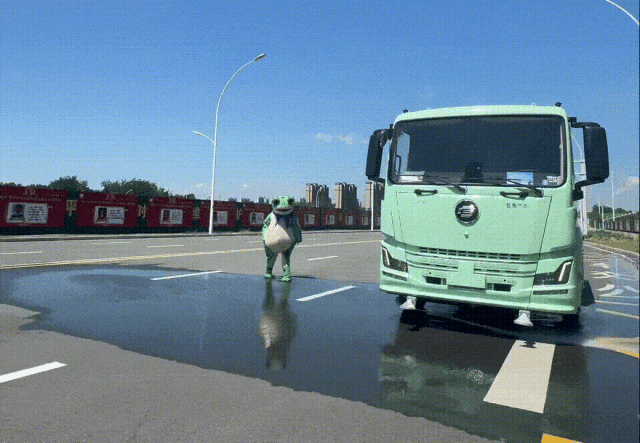

Core Technology: An optional dual system featuring millimeter-wave radar and AI visual recognition covers three lanes on a single side, creating a 15-meter golden recognition zone.

Reaction Speed: Achieves a lightning-fast 0.1-second reaction time to detect pedestrians, e-bikes, and small animals.

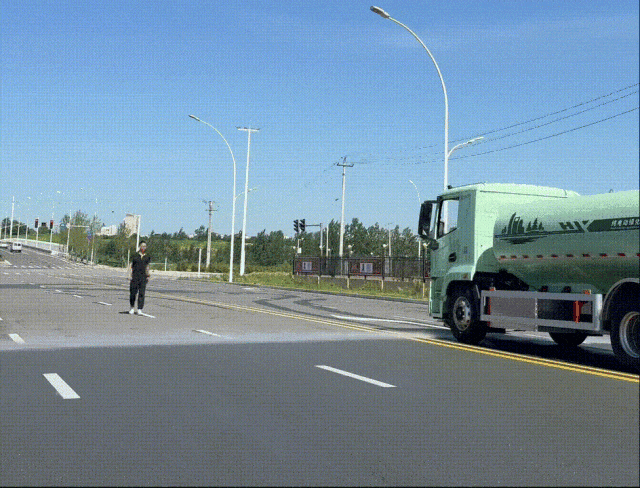

Smart Linkage: Upon detecting an obstacle, the front flush water instantly shuts off, while other functions like rear sprinkling and the high-pressure cannon remain unaffected, balancing safety and efficiency.

Highlight: This system upgrades the vehicle from a simple operational tool to an "intelligent mobile platform" with proactive safety awareness, greatly enhancing operational safety and social responsibility in complex urban environments.
