【Hot-Selling Recommendation】Kailifeng – Dongfeng Huashen T3 Upgraded 9.3 m³ Water Sprinkler Truck

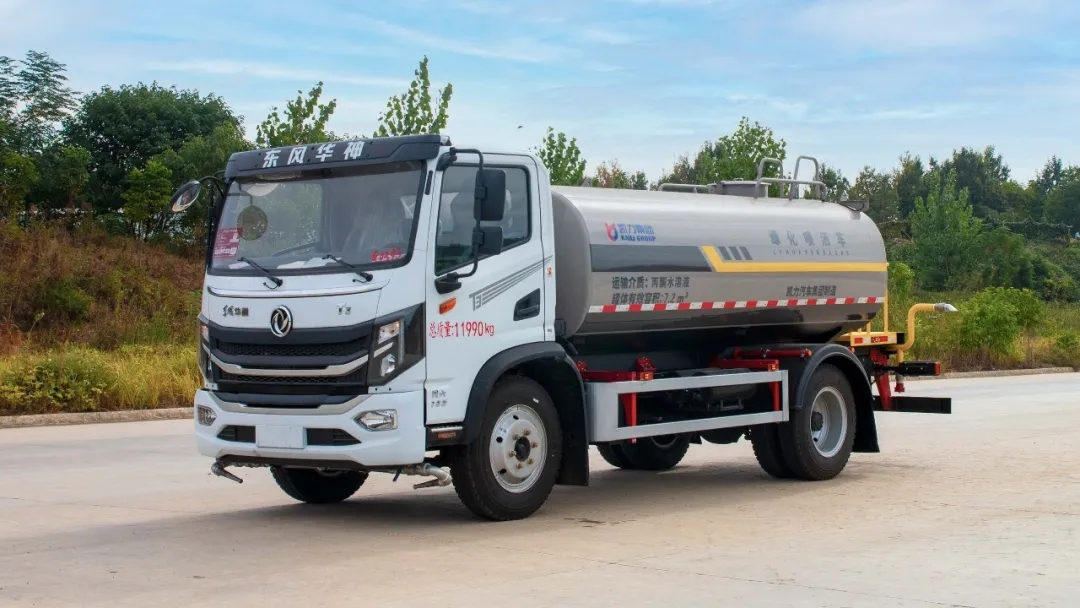

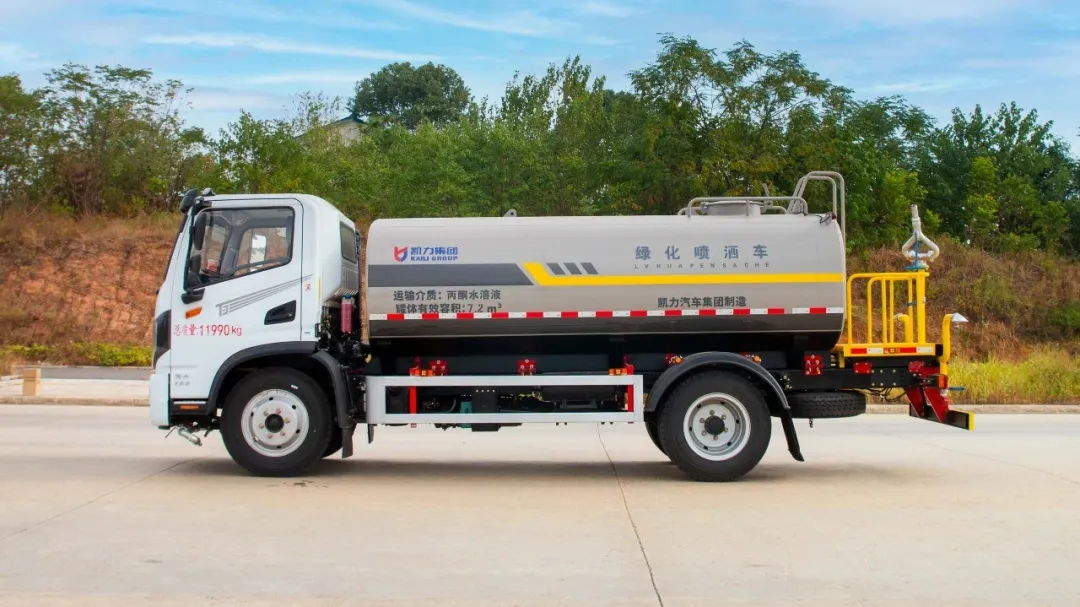

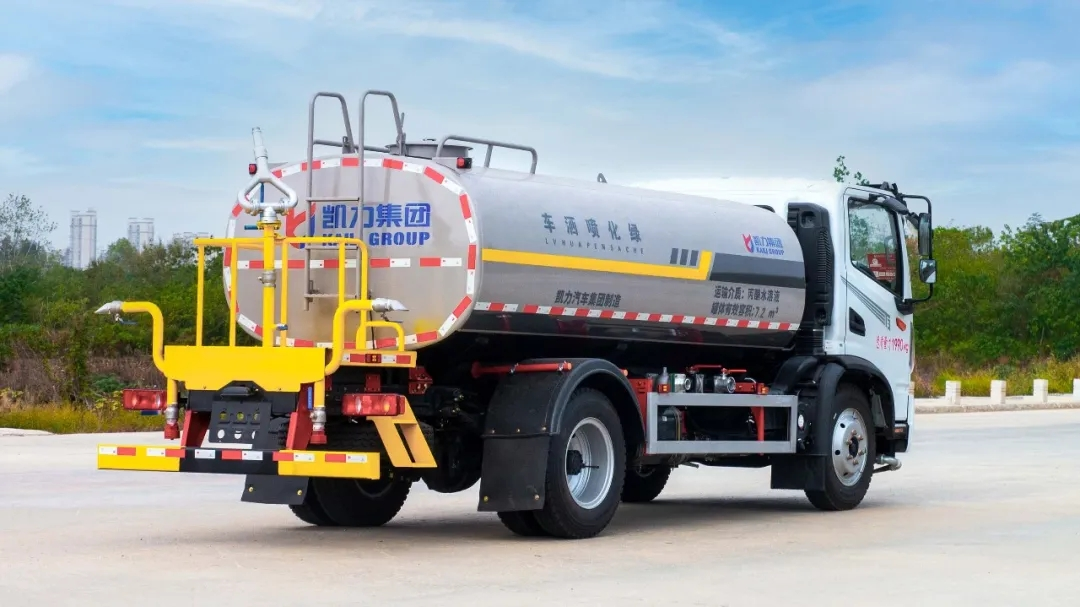

Hot-Selling Recommendation – Kailifeng Dongfeng Huashen T3 Water Sprinkler Truck (Vehicle Model: KLF5121GPSE6)

As a star product of standardized production at Kaili Group, the Kailifeng Dongfeng Huashen T3 Water Sprinkler Truck (Vehicle Model: KLF5121GPSE6) has become the top choice for over 70,000 users, thanks to its modular design, robust performance, and exceptional cost-effectiveness. Assembled on China's first standardized production line, it undergoes 14 rigorous processes with zero welding throughout, and can be efficiently rolled off the line in just 90 minutes. It is a practical choice for municipal greening, road maintenance, and construction site dust suppression, and stands as a true leader in standardized sprinkler truck manufacturing.

Core Specifications – Strong Power, Large Capacity, All-Round Performance Without Compromise

CategoryParameters / Configuration

Wheelbase3800 mm

Engine Power110 / 121 / 125 kW

DimensionsMultiple specifications available

Curb Weight4800 / 4955 kg

Tank Capacity9.3 m³

Front Spray Width15–30 m, covering up to 8 lanes in both directions

Water Cannon Range30–35 m throw height, 360° adjustable

Dedicated Sprinkler PumpHigh-power pump with 6 m vertical suction lift

Standard FunctionsMulti-directional front spray, rear spray, side spray, S-pattern sprinkler cannon, GB-standard firefighting inlet

Product Features – Standardized Craftsmanship Ensures Quality, Detail-Oriented Design Reflects Excellence

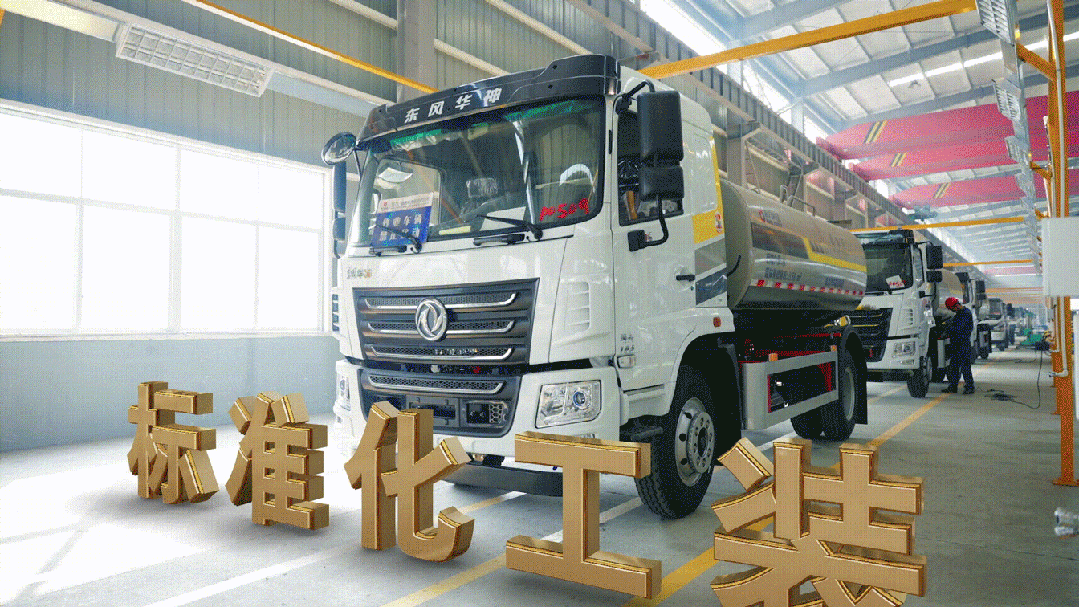

Standardized Production Line Manufacturing

Assembled on China's first standardized production line, the vehicle features modular design with zero welding throughout. Strict quality control is maintained across 14 processes, and the entire vehicle can be completed in just 90 minutes – setting an industry benchmark for production efficiency. The tank manufacturing process employs advanced techniques including material cutting, automatic welding of spliced plates, spin forming of end caps, one-step tank forming, and automatic circular welding, ensuring a robust structure and strong sealing performance that fundamentally eliminates leakage issues.

High-Power Pump and Large-Diameter Piping

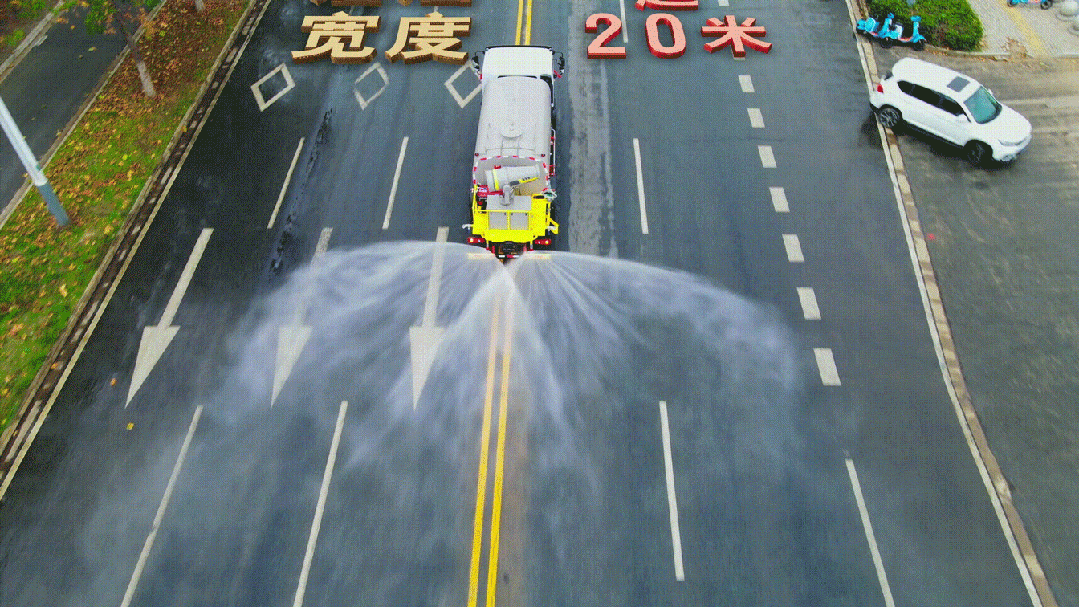

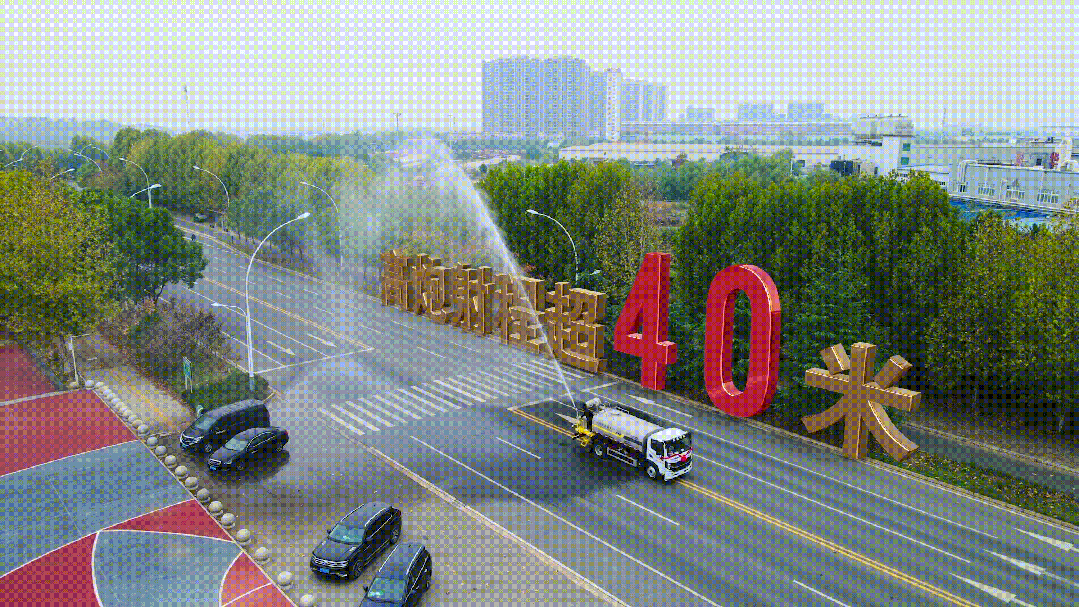

Equipped with a custom-designed high-power sprinkler pump featuring excellent performance and high flow rate, the front spray can easily cover up to 8 lanes in both directions, sweeping road debris such as gravel to the roadside for easy cleaning. The rear spray covers up to 4 lanes, ideal for wetting construction surfaces and maintenance watering. The water cannon achieves a maximum range of 40 meters with 360° rotation, effortlessly handling long-range dust suppression and elevated cleaning tasks. The intake piping features a large 89 mm diameter design for maximum water intake, significantly reducing filling time and improving overall operational efficiency.

Robust and Safe Structure

Stable Connection: The tank and sub-frame are connected with bolted connection plates, preventing displacement even on bumpy or complex road surfaces, significantly enhancing safety and structural integrity. The tank is connected to the inlet/outlet ports with Φ89 hoses, reducing friction-induced damage to pipes and the sub-frame during operation.

Dual-Support Protection: A dual-support design at the tank-chassis connection provides greater load-bearing capacity, improved driving stability, and a higher safety margin.

Anti-Freeze Design: Two drain ports are located at the bottom of the tank, allowing complete drainage of residual water in winter to effectively prevent freezing and cracking, ensuring reliable operation in low-temperature environments.

User-Friendly Details

Convenient Inspection: The manhole is repositioned rearward, the tank guardrails are shortened, and a ladder is added at the entry point, making it easy for personnel to enter the tank for inspection and maintenance. Water can also be filled directly into the tank via municipal greening watering nozzles for flexible and efficient operation.

Anti-Slip Safety: The rear platform uses bolted connection plates with a perforated surface design for enhanced load capacity, anti-slip performance, and resistance to deformation. Thickened and enlarged frame-type step plates ensure safe and convenient entry and exit.

Surge Reduction for Stable Driving: The tank is divided into 2–3 compartments with through-holes at the bottom of the partitions and internal anti-surge baffles, significantly reducing liquid surge impact during driving for smoother and more stable operation.

Durable and Sealed Design: Acrylic transparent hollow sight tubes combine aesthetics with functionality. Flange seals use O-ring technology for improved sealing performance and extended service life.

Product Advantages – Four Core Highlights, Trusted by 70,000+ Users

01 Standardized Production – Assured Quality and High Efficiency

Assembled on China's first standardized production line with modular design and zero welding, the vehicle completes 14 processes and rolls off the line in just 90 minutes, delivering both production efficiency and consistent quality. It is the undisputed leader in standardized sprinkler truck manufacturing.

02 Premium Craftsmanship – Long-Lasting Corrosion Resistance and Aesthetic Appeal

The tank is made of 4 mm thick high-quality carbon steel from Wugang, combined with electrophoretic coating (offering high transparency, high fullness, and three-dimensional gloss) and powder spraying treatment. This provides exceptional anti-corrosion and anti-rust performance, keeping the finish bright and durable even after prolonged use.

03 Sturdy Structure – Safe, Reliable, and Low Maintenance

Multiple safety features – including dual-support connections, bolted tank fixation, and anti-surge baffle design – minimize damage from road bumps. The high-power pump and large-diameter piping are less prone to clogging, reducing failure rates and ensuring long-term peace of mind.

04 Comprehensive Functionality and Worry-Free After-Sales Support

Standard equipment includes multi-directional front spray, rear spray, side spray, water cannon, and firefighting inlet, meeting diverse operational needs. With over 70,000 real-world users and ranking among the top three in national sales, the vehicle is backed by Kaili's 24/7 after-sales service, ensuring complete peace of mind throughout its service life.

Application Scenarios – Full-Scene Coverage, A Versatile Partner for Municipal Sanitation

The Kailifeng Dongfeng Huashen T3 Water Sprinkler Truck is suitable for a wide range of applications, truly earning its reputation as a "multi-talented" sanitation vehicle:

Municipal Road Maintenance: Front spray cleans road debris, while rear spray provides moisture retention and dust suppression, easily handling daily cleaning and maintenance of urban arterial and secondary roads.

Greening and Irrigation: Side spray is ideal for watering roadside green belts and lawns, with gentle water distribution that won't damage newly planted flowers and shrubs. The water cannon can irrigate vegetation along highways from a distance, improving greening maintenance efficiency.

Construction Site / Mining Area Dust Suppression: The high-power pump combined with the long-range water cannon effectively controls airborne dust concentrations in construction sites and mining areas, improving working environments.

Factory / Residential Area Cleaning: Suitable for road washing, green irrigation, and summer cooling in factories and residential communities, enhancing cleanliness and comfort.

Emergency Firefighting Support: Equipped with a GB-standard firefighting inlet, the vehicle can connect to fire hoses for small-scale fire rescue operations, proving its value in critical moments.

Choosing this water sprinkler truck means choosing a standardized, reliable piece of equipment validated by over 70,000 users. With standardized production, uncompromising quality, and attentive after-sales service, Kaili ensures your greening, dust suppression, and road maintenance operations are handled efficiently and effortlessly – every single time.
